Product details

8Technical data9

Recipient

• LCD screen size: 7" TFT LCD screen
• Resolution: 1024x600
• Transmission frequency: 2.4 GHz Digital RF modulation
• Sensitivity: -85dBm
• Power supply: DC 5V/1000mA
• Transmission distance (without obstacles): 100m (330ft)
• Dimensions: 20x12x2cm
• Battery capacity: 1200mAh (BL-5C)
• Adapter input: AC100~240V, 50/60Hz, DC5V 1000mA

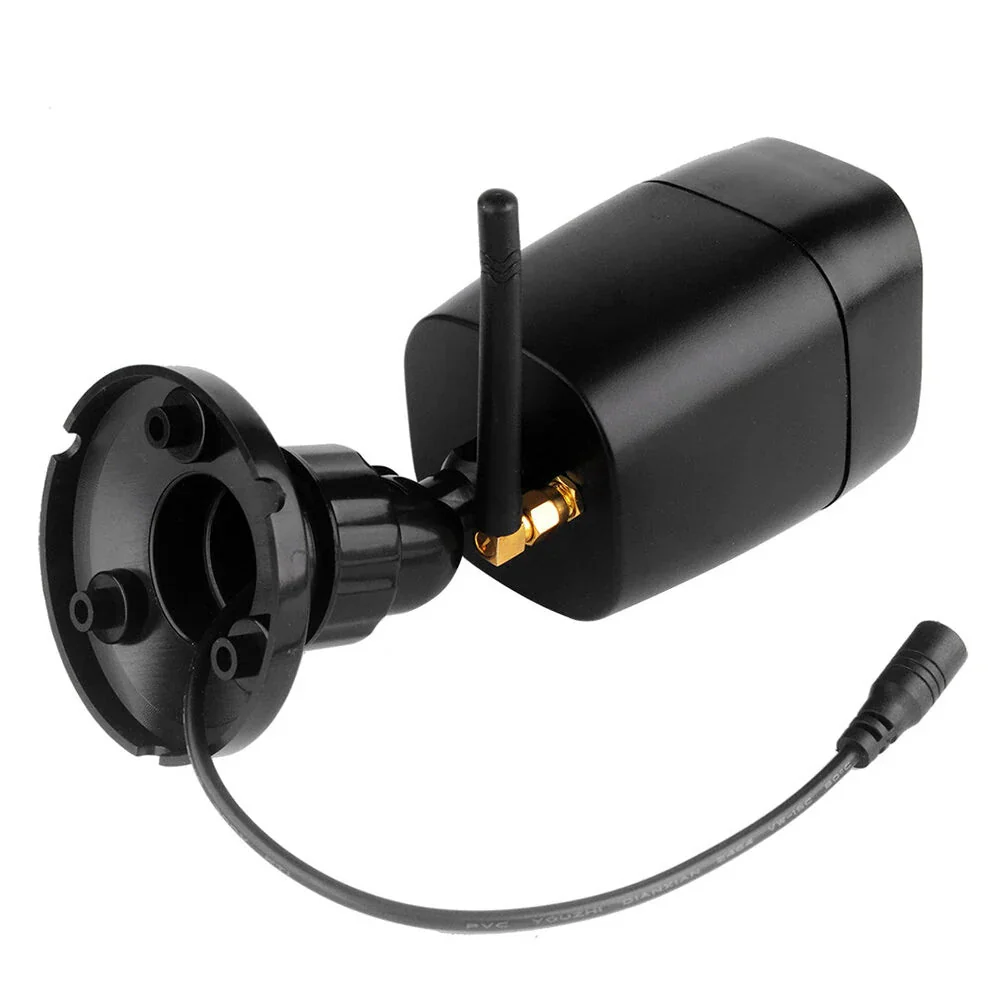

camera

• Image sensor: 1/4" Omni OV7725 Vision CMOS 720P
• Adapter input: AC100~240V, 50/60Hz, DC5V 1000mA
• Pixels: 0.6MP
• Transmission frequency: 2.4 GHz Digital RF modulation
• Minimum illumination: 0 lux (infrared LED ON), 5 lux
• Night vision distance: 15m
• Power supply: DC 5V/1000mA

8Characteristics9

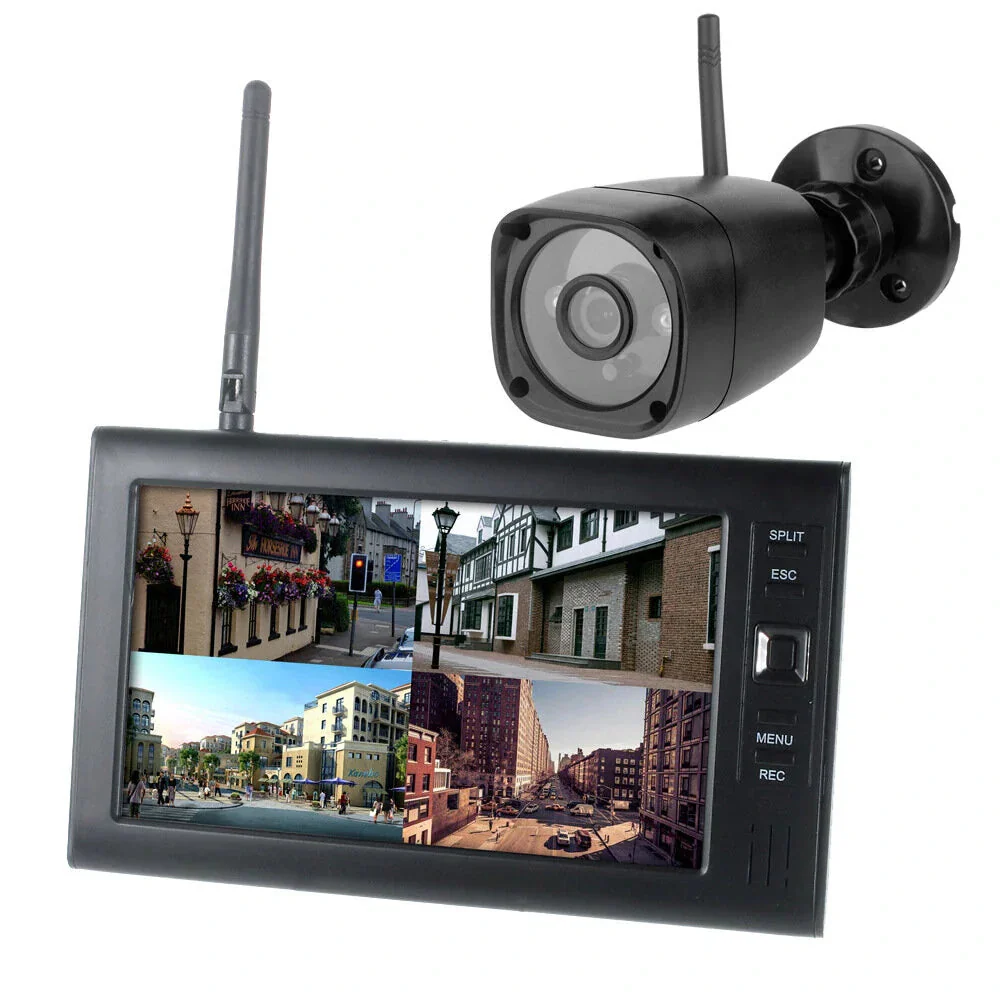

• 4CH Digital Wireless Camera and DVR System
• Completely digital wireless: No interference, no data breaches

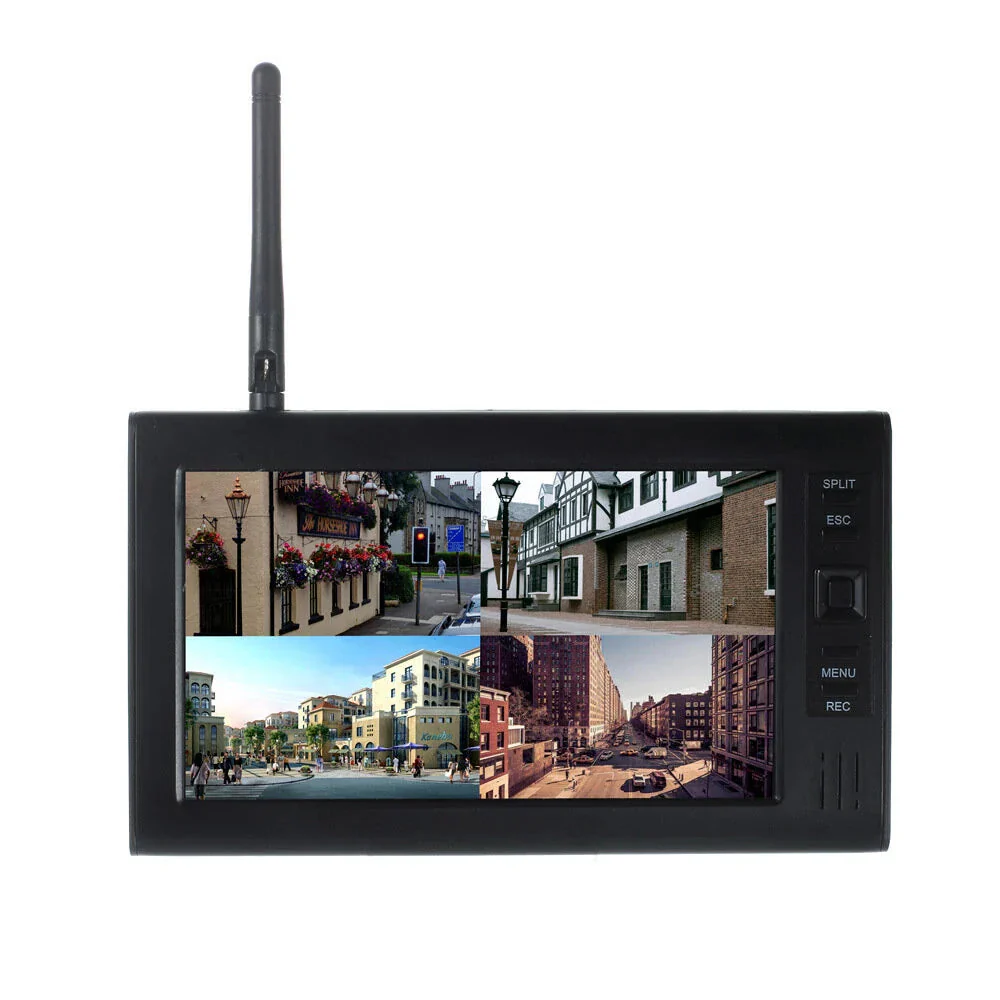

• 7-inch TFT LCD monitor with integrated video recorder
• Supports up to 32GB TF card
• Supports 4 cameras/24 hours/7 days continuous overwriting
• Multiple recording modes: Manual, Scheduled
• Night vision range of 6-15 meters
• Weatherproof outdoor cameras with a 50m transmission range
• Easy installation, no cable required

8Scope of delivery9

• 1x TFT LCD color screen
• 1x camera
• 2x power adapters
• 1x bracket
• 1x User manual
